VRM Vertical Slag Mill Working principle

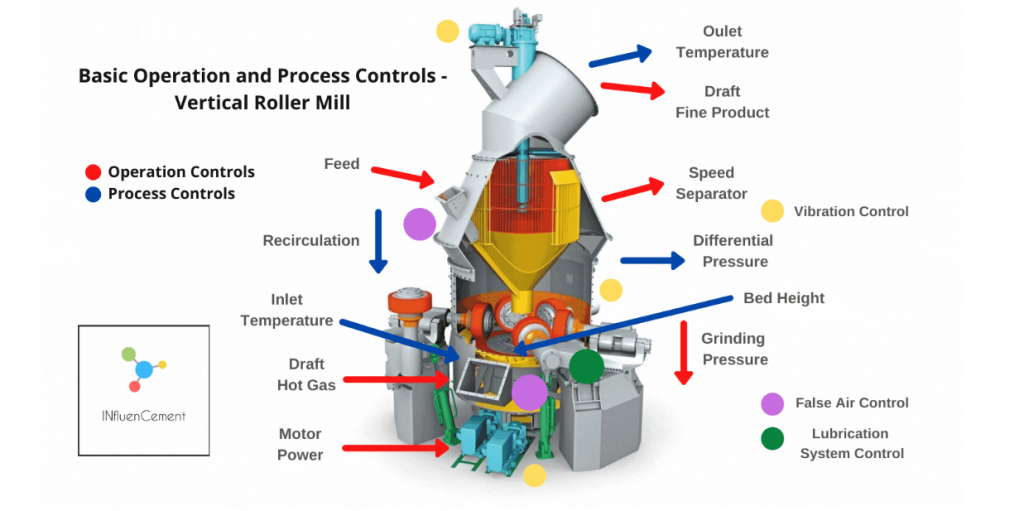

The VRM Vertical Slag Mill is a negative pressure, air-swept grinding machine designed to dry and grind slag. During operation, the main motor rotates the grinding disc through a reducer, while hot air enters the VRM Vertical Slag Mill through the air inlet. The material falls from the discharge port onto the VRM Vertical Slag mill roller area above the grinding disc. The rollers crush the material, directly crushing large lumps while squeezing fine particles into a bed of material, resulting in inter-particle crushing. The crushed material then continues toward the edge of the grinding disc until it is carried away by the strong airflow from the air ring. Larger particles fall back onto the grinding disc for further crushing.
As the material in the airflow passes through the upper separator, the rotor blades pull the coarse particles back to the grinding disc for grinding. The qualified fine powder is discharged with the airflow and collected by the system’s powder collector. This collected powder becomes the finished product. Iron filings and other debris mixed with the material move to the edge of the grinding disc, where they are prevented from being lifted by the wind due to their own weight.
