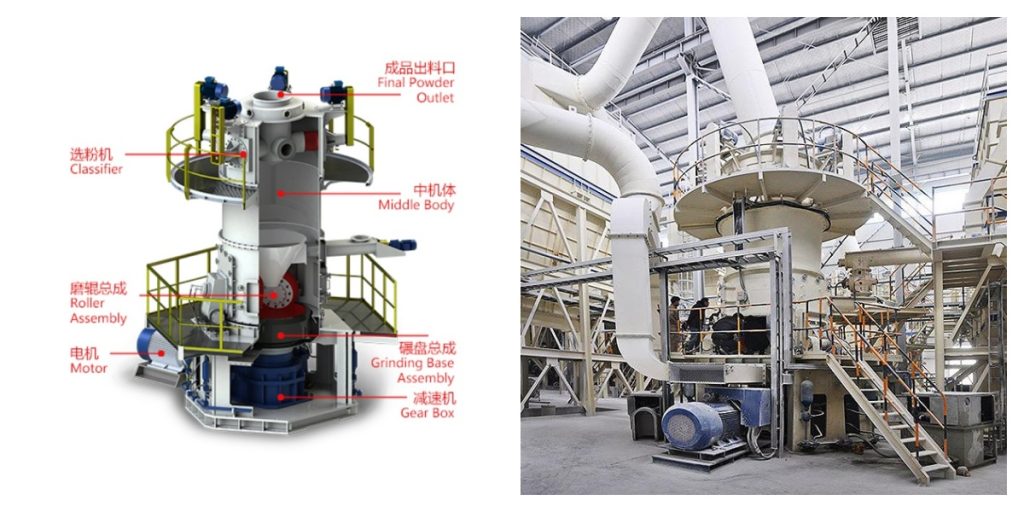

VLUM ultrafine powder vertical roller mill
CLUM series ultrafine powder vertical roller mill integrates the functions of grinding, classifying, conveying, secondary classifying, and packing progress into one machine. Its powder fineness can reach 400- 3000 mesh.Raw materials — calcite, marble, limestone, dolomite, barite, talc, kaolin, wollastonite, gypsum, feldspar, pyrophyllite etc.
Are you interested in our machines? Custom Solution for your needs.Contact Us.
VLUM ultrafine powder vertical roller mill Details
- DATE
- APPLICATION FIELD
- Reviews (3)
*The capacity and output will vary according to different materials, feed particle size, and other factors. Please contact VEST for equipment selection for specific projects.
| ModelItem | CLUM1425 | CLUM1632 | CLUM1736 |
| Working Diameters（mm） | 1400 | 1600 | 1700 |
| Number of rollers（pieces） | 3 | 3 | 3 |
| Number of classifier（pieces） | 6 | 6 | 8 |
| Power of classifier（Kw） | 6X15 | 6X22 | 8X22 |
| Main unit power （Kw） | 220-250 | 315-355 | 355-410 |
| Blower power（Kw） | 180-200 | 250-280 | 325-355 |
| Feed size （mm） | ＜10mm | ＜10mm | ＜10mm |
| Moisture of feeding material | ＜3% | ＜3% | ＜3% |
| Less than 2μm=30% output（t/h） | 9-12 | 12-16 | 14-18 |
| Less than 2μm=45% output（t/h） | 5.5-7.5 | 7-9 | 10-12 |
| Less than 2μm=60% output（t/h） | 3-4 | / | / |
Material: base on calcite
Particle size distribution: measured by microlayer diffraction particle size analyzer in British Malvern 3000 instruments
CLUM1425 ultrafine powder vertical roller mill Technical parameter
| Output (t/h) Item | 10.0-12.0 | 7.5-9.5 | 6.0-8.0 | 4.5-6.5 | 3.0-4.0 |
| specific surface area(cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 | 19000±1000 |
| 325mesh remaining amount (%) | 0.015 | 0.015 | 0.01 | 0 | 0 |
| less than 2μm powder content (%) | 30 | 40 | 45 | 50 | 60 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2 | 1.4 |
| General name(mesh) | 600 | 800 | 1250 | 2000 | 2500 |
| Particle size distribution D97 (um) | 30 | 25 | 20 | 15 | 9 |
| Particle size cut point D100 (um) | 80 | 48 | 38 | 28 | 18 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% | <0.3% |
| Energy consumption (KW/T) | 38-40 | 40-50 | 47-53 | 50-53 | 110-125 |
CLUM1632 ultrafine powder vertical roller mill Technical parameter
| Output (t/h) Item | 12.5-14.5 | 9.5-11.5 | 7.5-9.5 | 6.0-8.0 |
| specific surface area(cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 |
| 325mesh remaining amount (%) | 0.015 | 0.015 | 0.01 | 0 |
| less than 2μm powder content (%) | 30 | 40 | 45 | 50 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2.0 |
| General name(mesh) | 600 | 800 | 1250 | 2000 |
| Particle size distribution D97 (um) | 30 | 25 | 20 | 15 |
| Particle size cut point D100 (um) | 80 | 48 | 38 | 28 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% |
| Energy consumption (KW/T) | 38-40 | 40-50 | 47-53 | 50-53 |
CLUM1736 ultrafine powder vertical roller mill Technical parameter
| Output (t/h) Item | 15.0-18.0 | 11.5-13.5 | 9.0-11.0 |
| specific surface area(cm²/g) | 11000±500 | 13500±500 | 15000±500 |
| 325mesh remaining amount (%) | 0.015 | 0.015 | 0.01 |
| less than 2μm powder content (%) | 30 | 40 | 45 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 |
| General name(mesh) | 600 | 800 | 1250 |
| Particle size distribution D97 (um) | 30 | 25 | 20 |
| Particle size cut point D100 (um) | 80 | 48 | 38 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% |
| Energy consumption (KW/T) | 38-40 | 40-50 | 47-53 |
