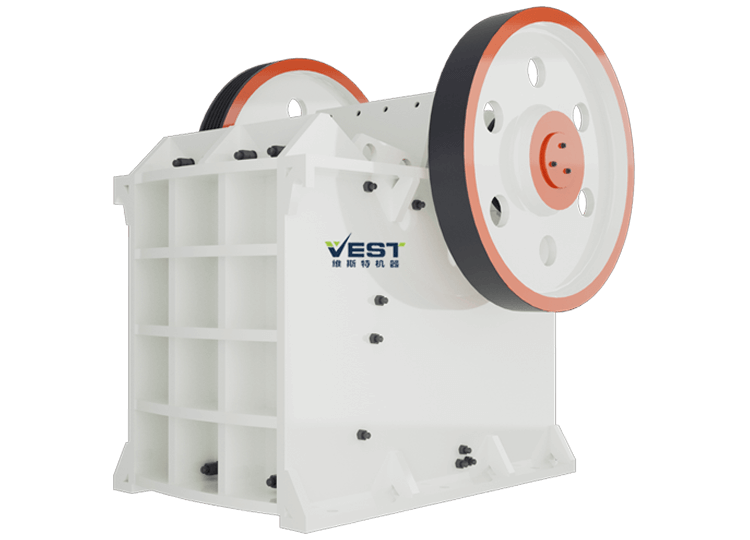

PE Series Jaw Crusher
PE Series Jaw Crusher is one traditional primary or secondary crushing equipment used to crush stone below 320MPa compressive strength. It will crush Large stone to Medium or small size (crushing ratio 3-6), which have various models to meet a lots of capacity requirements of crushing plants.Raw materials for processing in PE Series Jaw Crusher —granite, aggregate, rock, gold stone, gravel, basalt, slag, ore, etc.
Are you interested in our machines? Custom Solution for your needs.Contact Us.
PE Series Jaw Crusher Details
- DATE
- APPLICATION FIELD
- Reviews (3)
*The capacity and output will vary according to different materials, feed particle size, and other factors. Please contact VEST for equipment selection for specific projects.
| Model | Size of Feed Opening (mm) | Max Feed Edge (mm) | Discharge Opening Range(mm) | Eccentric Shaft Speed (r/min) | Capacity (t/h) | Motor Power (kw) |
| PE250×400 | 250×400 | 220 | 20-60 | 300 | 5-20 | 15 |
| PE400×600 | 400×600 | 340 | 40-100 | 275 | 15-60 | 30 |
| PE500×750 | 500×750 | 425 | 50-100 | 275 | 40-110 | 45-55 |
| PE600×900 | 600×900 | 500 | 65-160 | 250 | 90-180 | 75 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 250 | 110-320 | 110 |
| PE900×1200 | 900×1200 | 720 | 95-165 | 200 | 220-450 | 132-160 |
| PE1000×1200 | 1000×1200 | 800 | 200-300 | 200 | 280-560 | 160-185 |
| PE1200×1500 | 1200×1500 | 1000 | 150-300 | 180 | 400-800 | 200-220 |
| PE1500×1800 | 1500×1800 | 1200 | 210-360 | 180 | 700-1280 | 355-400 |
| Model | Size of Feed Opening (mm) | Max Feed Edge (mm) | Discharge Opening Range(mm) | Eccentric Shaft Speed (r/min) | Capacity (t/h) | Motor Power (kw) |
| PEX250×750 | 250×750 | 210 | 25-60 | 330 | 13-35 | 30 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 330 | 16-55 | 30 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 330 | 20-60 | 37 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 300 | 30-90 | 55-75 |
Leave a review
Why Choose VEST PE Series Jaw Crusher
-
High cost performancelowest price, best work return
-
High quality spare partsMn13Cr2/Mn18Cr2,long lifetime, full service system, saving costs
-
High Crushing efficiencyThe design of deep V crushing chamber adjustable final size, reliable performance, easy maintenance
-
Energy savingSingle machine saves 15% to 30% energy,. Low noise and less dust.
