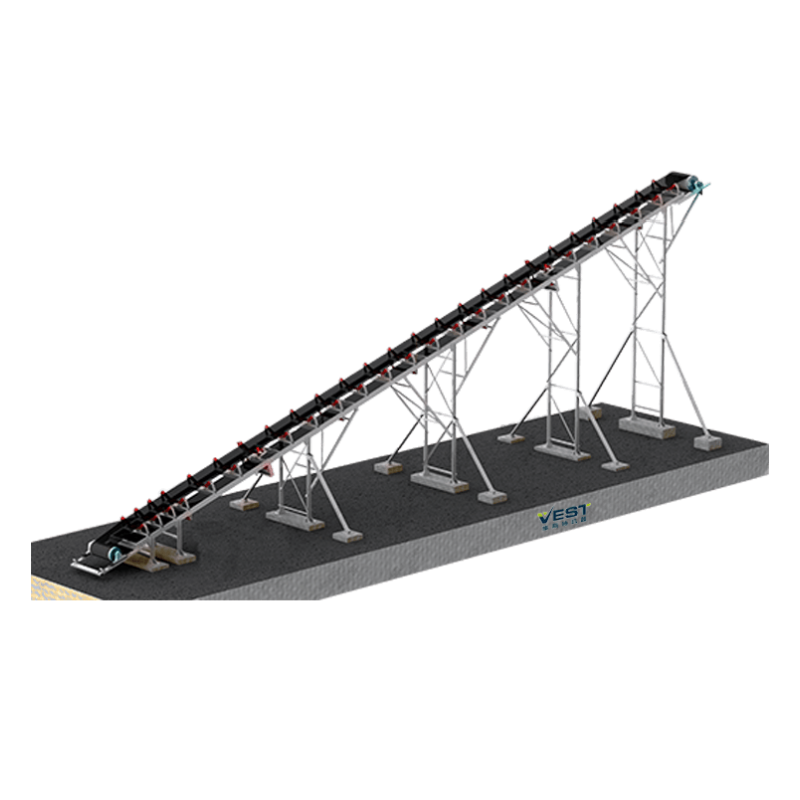

Belt Conveyor
In industry, belt conveyor acts as connections between different equipment to realize continuous and automatic production, which can improve efficiency and reduce labor intensity.
Are you interested in our machines? Custom Solution for your needs.Contact Us.
Belt Conveyor Details
- DATE
- APPLICATION FIELD
- Reviews (3)
*The capacity and output will vary according to different materials, feed particle size, and other factors. Please contact VEST for equipment selection for specific projects.
| Model | Belt Width (mm) | Conveying length(m) / Power(kw) | Conveying speed (m/s) | Conveying amount (t/h) | ||
| B500 | 500 | ≤10 / 3 | 12-15 / 4-5.5 | 15-30 / 5.5-7.5 | 1.25-2.0 | 40-80 |
| B650 | 650 | ≤10 / 4 | 12-15 / 7.5 | 15-30 / 7.5-11 | 1.25-2.0 | 80-120 |
| B800 | 800 | ≤10 / 4 | 12-15 / 7.5 | 15-30 / 7.5-15 | 1.25-2.0 | 120-200 |
| B1000 | 1000 | ≤10 / 5.5 | 10-20 / 7.5-11 | 20-40 / 11-22 | 1.25-2.0 | 200-320 |
| B1200 | 1200 | ≤10 / 7.5 | 10-20 / 7.5-15 | 20-40 / 15-30 | 1.25-2.0 | 290-480 |
| B1400 | 1400 | ≤10 / 11 | 10-20 / 15-22 | 20-40 / 22-45 | 1.25-2.0 | 400-680 |
| B1600 | 1600 | ≤10 / 15 | 10-20 / 22-30 | 20-50 / 30-75 | 1.25-2.0 | 600-1080 |
| B1800 | 1800 | ≤10 / 18.5 | 10-20 / 30-45 | 20-50 / 45-110 | 1.0-2.0 | 800-1500 |
| B2000 | 2000 | ≤10 / 22 | 10-20 / 45-55 | 20-50 / 55-132 | 1.0-2.0 | 1000-2000 |
| B2400 | 2400 | ≤10 / 30 | 10-20 / 55-75 | 20-50 / 75-185 | 1.0-2.0 | 1500-3000 |
Note:
1. The conveying capacity in the table is obtained under the conditions of material density of 1.0t/m3-1.6t/m3, conveyor inclination angle ≤18°, and material stacking angle of 30°.
2. The density of the conveyable material is below 2.5t/m2.
3. The conveying length is not limited to the values listed in the table and can be manufactured according to user needs.
